Range trading: breakout acceptance, volume profile and VWAP

Define a range before the breakout, map uncertain cost zones and combine price acceptance with profiles, VWAP and session context.

Course outline

1. 1

   Define a locked-in range as a hypothesis you can test

   Fix range boundaries and an observation window, measure normalised open interest growth and test the breakout without assuming the same traders stay locked in.

   8 min

   In short: A locked-in range is a hypothesis: fix instrument, venues, timezone, window and boundary rule, measure normalised OI growth, and save the range before any departure. Rising OI shows net exposure growth, not which traders are trapped; test acceptance and invalidation across all qualifying ranges.

2. 2

   Map cost-adjusted break-even zones without inventing stops

   Calculate long and short break-even zones from a hypothetical entry range. Include trading fees and funding while keeping the uncertainty about actual entries.

   8 min

   In short: For a linear position with a fixed all-in cost C per unit, break-even is entry + C for a long and entry − C for a short. Entries of 100–101 with 0.12 cost give a long zone of 100.12–101.12 and a short zone of 99.88–100.88; signed funding shifts them.

3. 3

   Define breakout acceptance before the breakout happens

   Write a close-and-retest rule before the breakout, such as two five-minute closes and a retest. Account for the delay and keep failed breakouts in the sample.

   8 min

   In short: Write breakout acceptance before the outcome: a fixed rule such as two completed five-minute closes beyond the boundary plus a retest that holds, and an explicit failure rule. Enter no earlier than the final condition, size at the executable price, and keep qualified failures in the sample.

4. 4

   Calculate volume profile and VWAP from the same sample

   The busiest price was 100, the volume-weighted average 102. Calculate volume profile and VWAP from the same trades and see why a value area is not a forecast.

   8 min

   In short: The point of control is the price bucket with the highest volume; VWAP is the sum of price × volume ÷ total volume over the same window. In the example the busiest price is 100 while VWAP is 1,530 ÷ 15 = 102, a feature of the distribution, not a broken indicator.

5. 5

   Choose timeframes and session context without moving the goalposts

   Give context, setup and execution timeframes separate roles before entry. Align UTC timestamps, daylight-saving changes, funding events and incomplete candles.

   8 min

   In short: Assign each timeframe a role before entry: higher for context, intermediate for the setup, lower for the execution trigger. Use completed-candle or intrabar rules consistently, store timestamps in UTC, and keep the original invalidation and exclusion rules when another chart looks different.

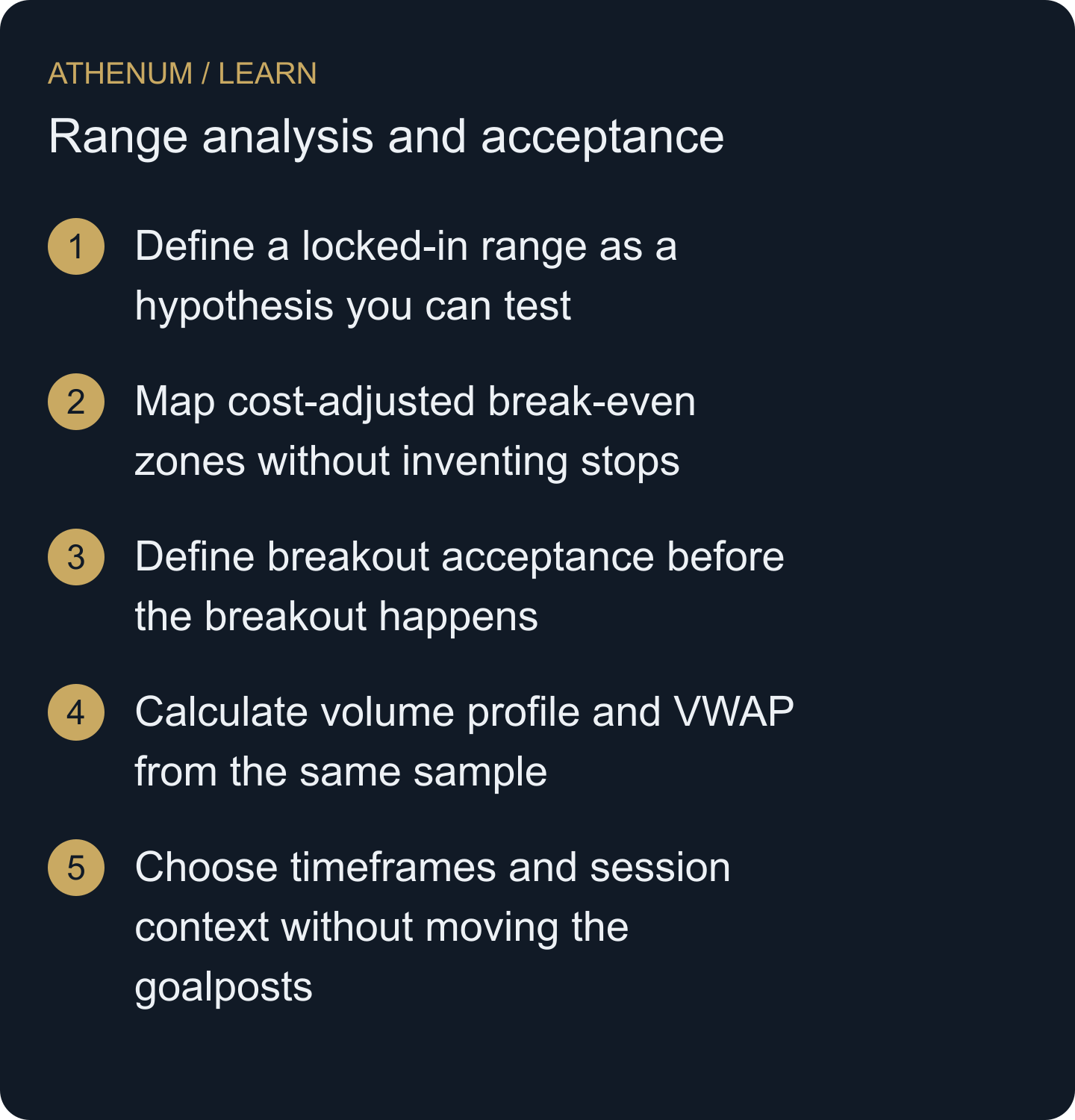

Open full-size diagram

1. Define a locked-in range as a hypothesis you can test
2. Map cost-adjusted break-even zones without inventing stops
3. Define breakout acceptance before the breakout happens
4. Calculate volume profile and VWAP from the same sample
5. Choose timeframes and session context without moving the goalposts

Educational material. Examples do not establish a profitable strategy. Trading costs, gaps and liquidation can produce losses beyond a planned stop.
